Equipment Tags and Short-Form Schedule

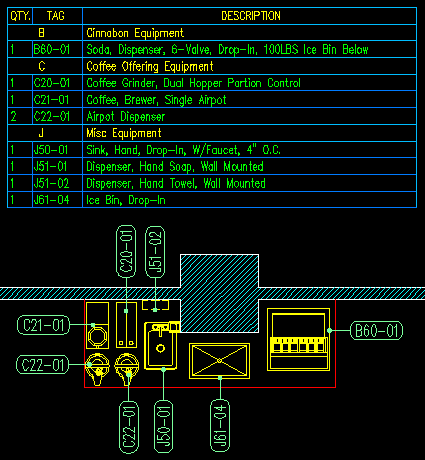

The image shows that some equipment has been placed and tagged with ID obtained from the database for the selected equipment block. Placing a tag requires just one click on the item and another for the end of the leader. Layering is automatic.

A short-form schedule has then been generated, including some additional information from the database. The short-form schedule is intended to appear with the drawing plan.

The schedule includes category rows, as read from the database. It grows in length to accommodate any number of items. If the length exceeds a specified maximum, it continues with another section to the right of the first.

Whenever the equipment plan is revised, the schedule can be updated with just one click.
