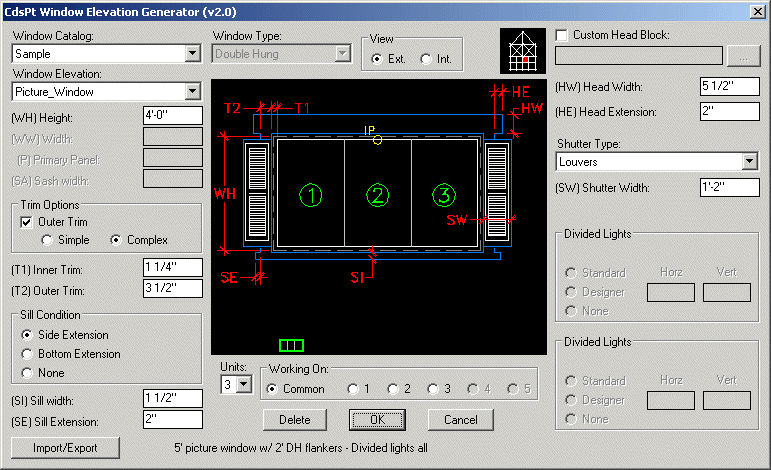

1. Display shows a window assembly with three units, looking at settings that are common to all.
(Settings pertaining to individual windows are disabled.)

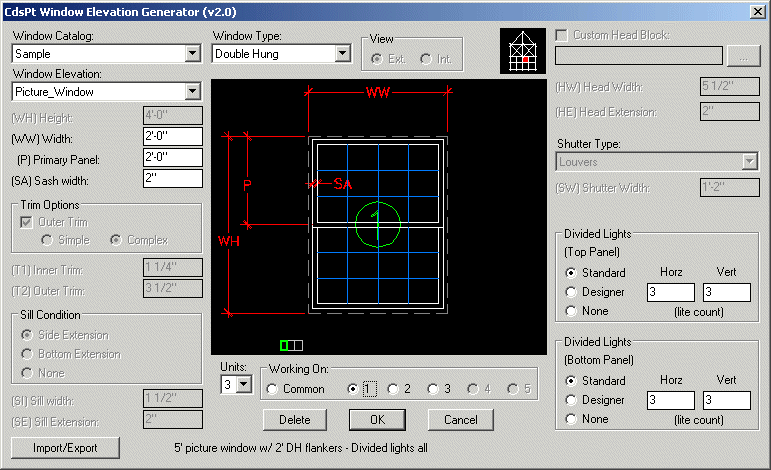

2. Display shows settings for unit 1 of the window assembly.
(Settings pertaining to common elements are disabled.)

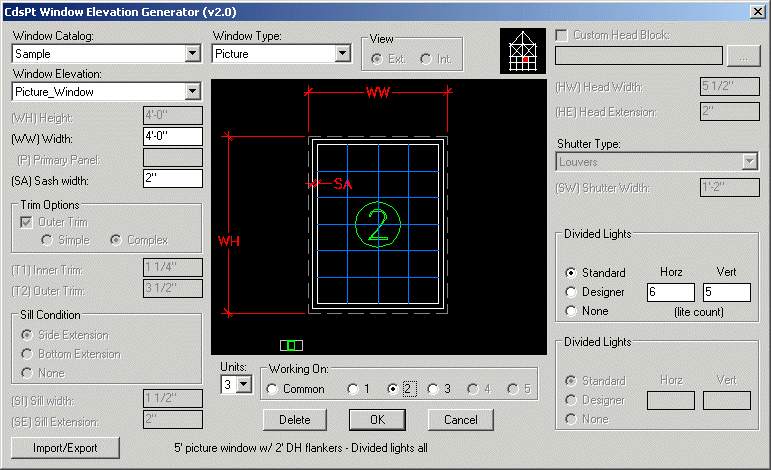

3. Display shows settings for unit 2 of the window assembly.
(Settings pertaining to common elements are disabled.)

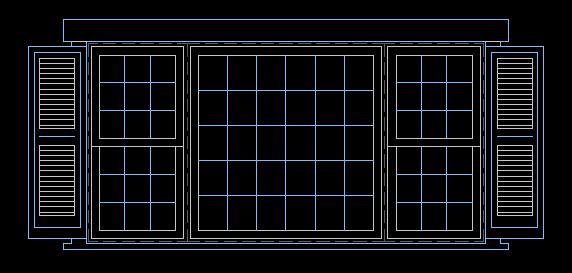

4. The window assembly elevation created in the drawing.
